There are four different views that display different information on the screen layout graphic. These view can be accessed by tapping on the menu icon at the top right of the screen.

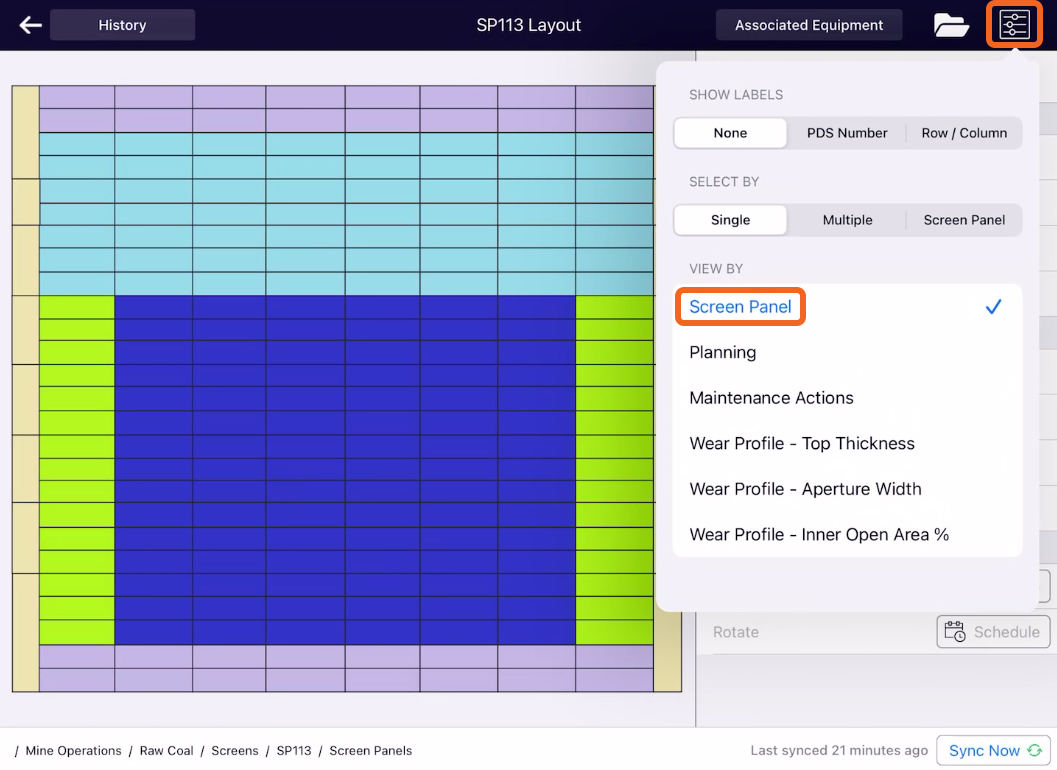

- Screen Panel View – This is the default setting, showing the panels coloured by part number.

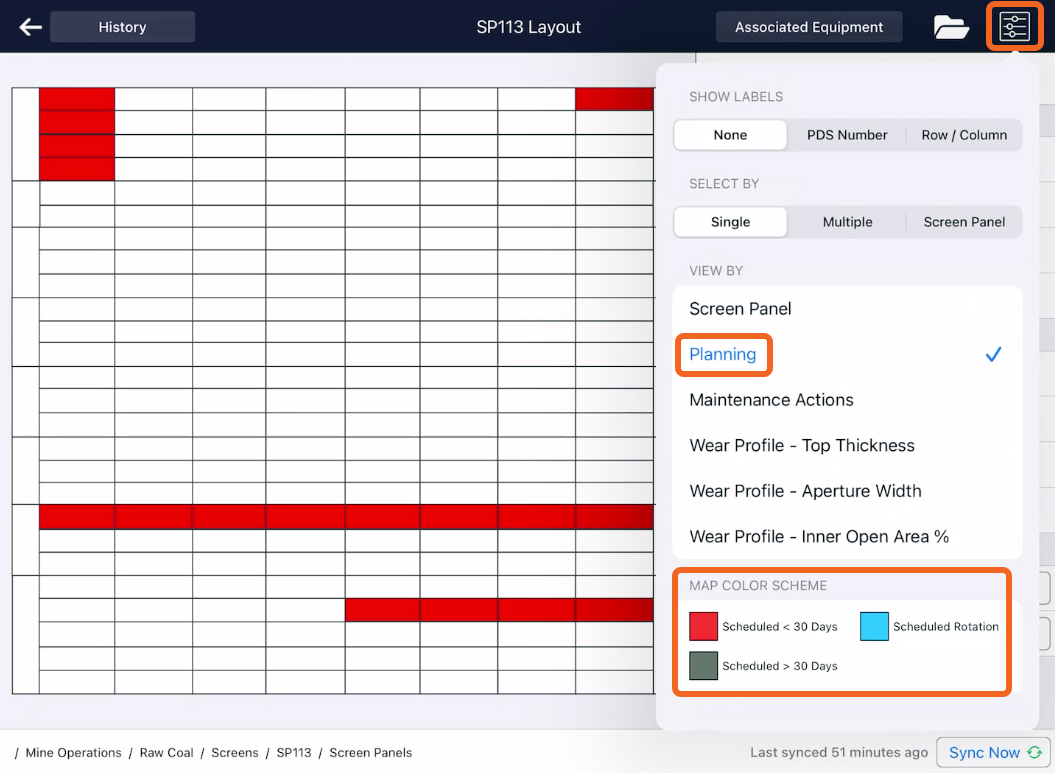

- Planning View – Displays the panels which have a scheduled action saved for them, currently Scheduled Replace, Rotate & Adjust. When Planning is selected, a legend will be shown for reference.

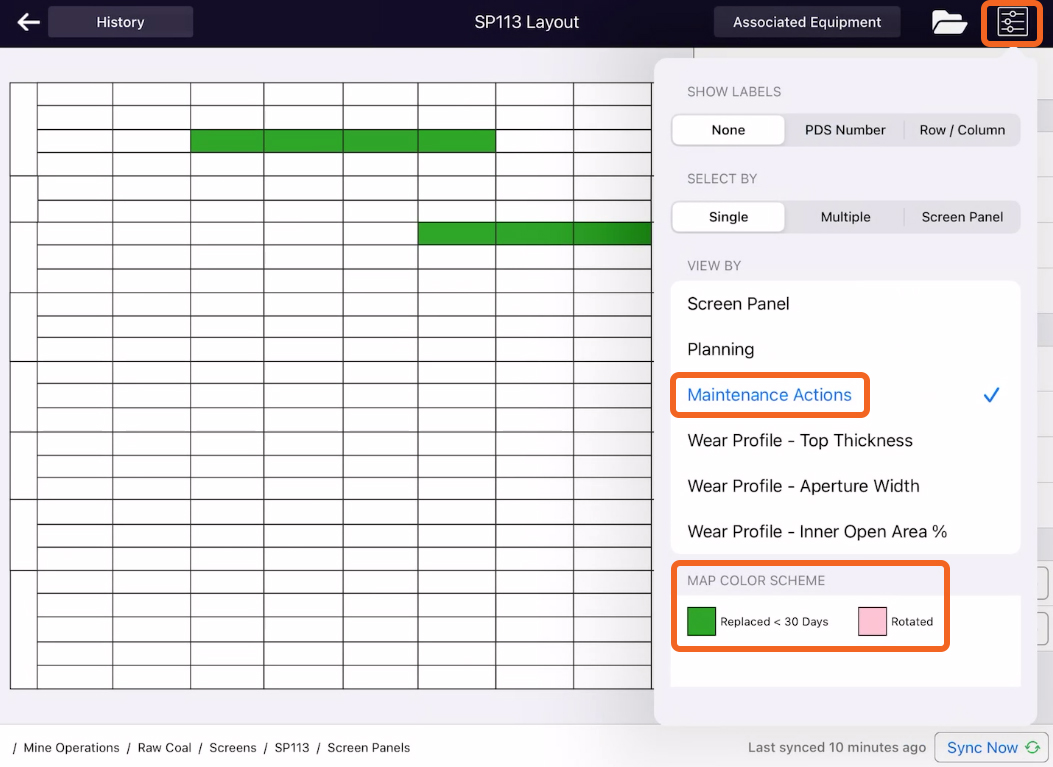

- Maintenance Actions View – Displays any panels that have had a maintenance action saved against them. The actions currently are Replace, Rotate or Adjust. Once Maintenance Actions is selected, a legend will be shown for reference.

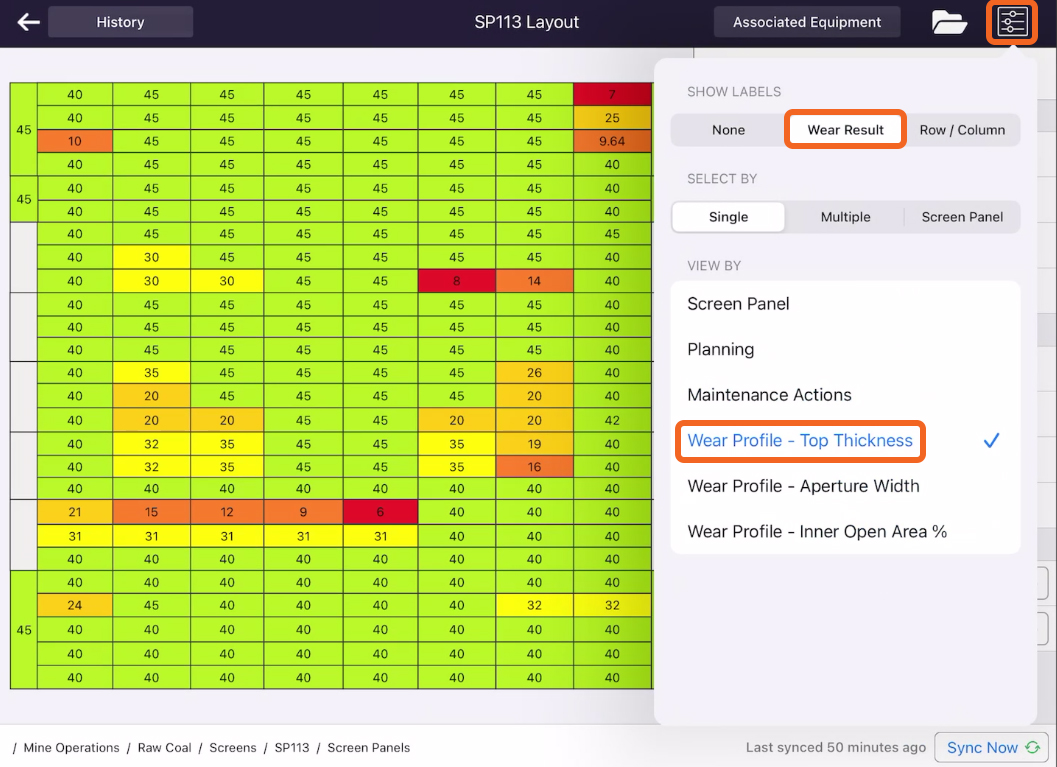

- Wear Profile View – Displays a heat map view of panel wear on the layout, from wear results saved against each panel. There are options to view by Top Thickness, Aperture Width and Inner Open Area %, depending on what measurements have been taken. The colour gradient works on a 20% band for the 5 colours. You can also elect to display the Wear Result as shown.
